Laboratory Electro Magnetic Drum Separator (Wet Process)

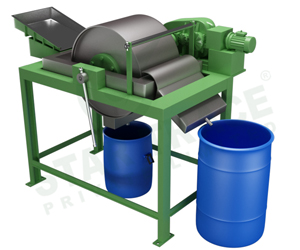

Electro Magnetic Drum Separator (Wet Process)
Principle
When a stream of ore particles is continuously passed through a field of magnetic force, the magnetic particles are attracted towards the source of magnetic force while the non-magnetics travel unaffected. The processing materials enter the top of the magnetic drum separator and flows across the surface of the drum. The rotating drum in the magnetic field captures the ferrous tramps whereas non-ferrous falls free from the drum into the cleaned material flow. As the drum rotates, the ferrous metal so captured is carried past the diverter and released outside of the magnetic field.

Specification:

Model

STDMS-300

STDMS -240

Magnetic impeller size

mm

F400300

F400240

Rotating speed

r/min

25

25

Intensity

GS

1250

1250

Separating size

mm

2

2.5

Capacity

kg/h

20~60

20-50

Power

kw

0.25

0.25

Voltage

v

380

380

Exciting voltage

sets

1

1

Overall dimensions

mm

151510401500

10306141196

Weight

kg

300

200
