Laboratory Hydrocyclone

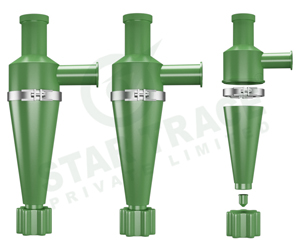

Hydrocyclone
Brief Description
Hydrocyclone has no moving parts. It consists of a conically shaped vessel, open at the bottom, variously called the underflow, apex or spigot, and connected to a cylindrical section which has a tangential feed inlet. The top of the cylindrical section is closed with a plate through which passes an axially mounted overflow pipe. The pipe is extended on to the body is the cyclone by a short, removable section known as vertex finder, which prevents short- circulation of feed directly into the overflow.

Parameters:

Hydrocyclone diameter

1"~12"

Process

0.8~85m3/h

Cone angle

6~20

Working pressure

0.03~0.5MPa



Hydrocyclone Test Rig

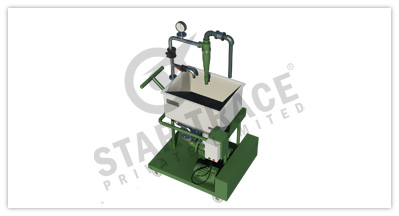

Hydrocyclone Test Rig
Star Trace Hydrocyclone Test Rig is designed for laboratory testing of classifying various solids in a slurry. It is equipped with a Hydrocyclone, a sump a slurry pump with a internal piping and valves to circulate the slurry through the cyclone from the sump or to re-circulate the slurry, and a pressure gauge to monitor the pressure drop across the cyclone. All equipment is conveniently mounted on floor or Steel frame.

Size of Hydrocyclone

2 to 15 (Customer Choice)

MOC

Polyurethane

Sump Tank

50 to 100 ltrs (Customer Choice)

Power

3.5 kw, 415v, 50/60Hz, 4 pole, 3phase.
